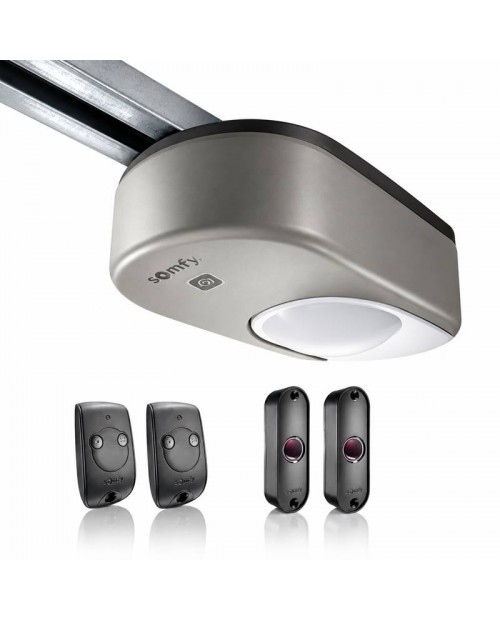

The SOMFY DEXXO PRO 1000 RTS is a garage door operator for compatible residential and semi-intensive installations. Its stated maximum door area of 15 m² makes it an option for larger garage openings, provided the door mechanism and rail are matched to the operator. Sectional, up-and-over and suitable lateral-opening arrangements require the appropriate installation hardware.
The control system combines RTS remote operation with an LCD programming interface. Thirteen adjustable parameters allow the installer to configure the operator for the actual door, while the cycle counter provides a useful reference when planning service visits. Partial opening can be used when a full opening is unnecessary.
External-light switching up to 500 W allows lighting to be incorporated into the garage controls. Compatible chain and belt rails provide installation choices, and optional battery backup can support access during a mains interruption. Rail type, accessories and battery provision should be specified as part of the order.
Key Features
- RTS wireless operation with compatible controls.
- LCD interface with 13 adjustable programming parameters.
- Obstacle detection and a built-in cycle counter.
- Partial opening for controlled access or ventilation.
- External-light control and optional backup battery support.
- Compatible chain, belt and high-performance rail options.
Technical Specifications
- Model: DEXXO PRO 1000 RTS / 3S RTS series.
- Maximum door surface: 15 m², subject to installation limits.
- Motor voltage: 24 V.
- Maximum travel speed: 18 cm/s.
- Minimum clearance below lintel: 35 mm.
- Programmable commands: 32.
- External-light output: 230 V, 500 W maximum.
- Integrated lamp specification: 230 V, 40 W, E14.
Garage Compatibility and Installation
For a garage in Dubai, Sharjah, Abu Dhabi or elsewhere in the UAE, begin with the actual door measurements and operating pattern. Check headroom, rail travel, mounting points and the condition of rollers, hinges and counterbalance hardware. A powered opener should be fitted to a door that already moves freely and remains correctly balanced.
During commissioning, the installer should set opening and closing travel, test force response and any connected safety sensors, and demonstrate the manual release. Confirm the supplied rail, remote controls and optional accessories before ordering so the installation matches the access requirements of the property.
Frequently Asked Questions
Does the 15 m² rating guarantee compatibility?
No. Door weight, balance, geometry and rail travel must also be checked. The area rating is one part of selecting the correct garage operator.
Can the opener control separate garage lighting?
The specified external-light output supports a load up to 500 W. The installer should check the lamp type and wiring requirements before connection.
Are the rail and battery included?
Confirm the chosen package before ordering. Several rail arrangements are possible, and backup battery operation requires the compatible battery accessory.
