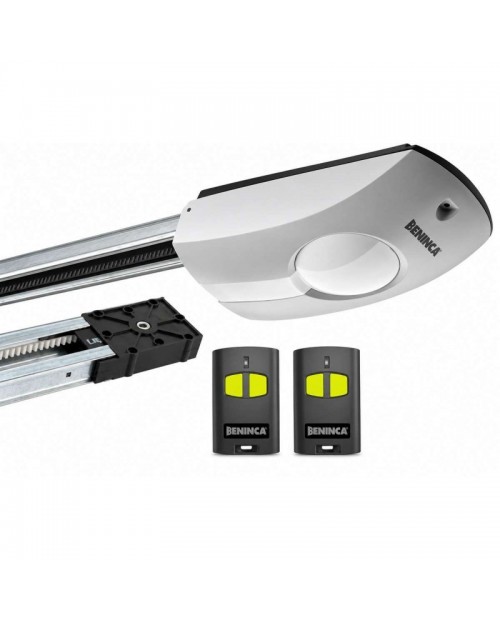

The BENINCA JM3 is a 24 V DC garage door operator designed for installations that need regular powered access. Its 600 N thrust rating and stated maximum door area of 11 m² provide a starting point for selecting an opener for a residential garage or suitable shared entrance. The door must be mechanically sound and correctly balanced before automation is added.
Movement is managed by an integrated encoder and electronic travel control. This lets the controller monitor the door during opening and closing rather than relying only on timed motor operation. Obstacle detection is part of the system, but correct force adjustment and safety-device testing are still essential during commissioning.
The JM3 combines its control unit and radio receiver in the operator assembly. A stated standby draw of no more than 0.5 W makes it relevant where the opener remains powered throughout the day but runs only when access is needed. Its rated travel speed is 12 m/min, with actual opening time depending on the door and settings.
Key Features
- Integrated encoder and electronic limit management.
- Built-in controller and radio receiver.
- 600 N thrust for a matched, balanced door.
- Obstacle monitoring through the control electronics.
- Low standby consumption of no more than 0.5 W.
Technical Specifications
- Model: BENINCA JM3.
- Power supply: 230 V AC, 50–60 Hz; motor: 24 V DC.
- Maximum absorbed current: 1 A.
- Thrust: 600 N.
- Maximum door area: 11 m².
- Opening speed: 12 m/min.
- Protection: IP40; operating temperature: −20°C to +50°C.
- Motor weight: 6.2 kg.
- Duty classification: intensive use, subject to installation conditions.
Garage Compatibility and Installation
For a garage in Dubai, Sharjah, Abu Dhabi or elsewhere in the UAE, begin with the actual door measurements and operating pattern. Check headroom, rail travel, mounting points and the condition of rollers, hinges and counterbalance hardware. A powered opener should be fitted to a door that already moves freely and remains correctly balanced.
During commissioning, the installer should set opening and closing travel, test force response and any connected safety sensors, and demonstrate the manual release. Confirm the supplied rail, remote controls and optional accessories before ordering so the installation matches the access requirements of the property.
Frequently Asked Questions
How do I choose between JM3 and JM4 ESA?
Compare the door area, force requirement and operating pattern. JM3 is listed at 600 N and 11 m²; JM4 ESA at 1200 N and 22 m². Final selection also depends on the door mechanism and rail.
Does a motor replacement fix a stiff garage door?
A binding or poorly balanced door should be repaired first. The opener is intended to move a serviceable door, not compensate for damaged rollers, tracks or counterbalance components.
Can I keep existing Beninca accessories?
Provide the accessory model numbers for checking. Receiver protocol, safety-device wiring and rail compatibility need to match the selected controller and operator.
