Rechargeable Battery Parking Lock 6V 7Ah
Protect your assigned parking space with a rechargeable parking lock that combines remote operation with a self-contained 6V 7Ah battery. The folding barrier helps discourage unauthorised parking while allowing the regular user to open the space from inside the vehicle. It is a practical option for bays where running a permanent power cable would be inconvenient.
This model uses a sealed lead-acid battery and is listed for approximately six to seven months of operation per charge under normal use. Actual intervals depend on operating cycles, battery condition and temperature. Its 400 mm raised height provides a clear parking-space marker, while the folded unit is 75 mm high.
Key Features
- Rechargeable 6V 7Ah lead-acid battery supply.
- Wireless remote raising and lowering.
- IP67-rated housing for protection against dust and water ingress.
- Steel body with stated compression resistance up to 2,000 kg.
- 180° anti-collision mechanism.
- Integrated buzzer alarm for abnormal operation or interference.
- Supports different remote pairing arrangements, subject to setup.
Technical Specifications
- Rated supply: DC 6V.
- Battery: 6V 7Ah rechargeable lead-acid.
- Indicative operating period: Approximately 6–7 months per charge.
- Material: Heavy-duty steel.
- Protection rating: IP67.
- Stated load/compression resistance: 2,000 kg.
- Folded dimensions: 440 × 435 × 75 mm.
- Raised height: 400 mm.
- Lowered height: 75 mm.
- Net weight: 7.5 kg.
- Listed operating temperature: −40°C to +70°C.

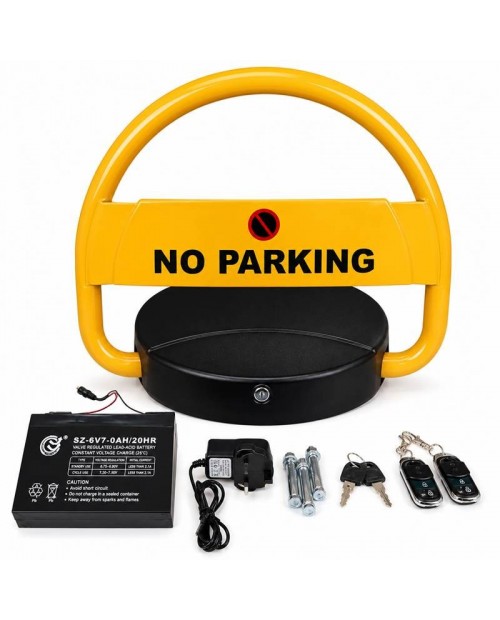

Kit Includes
- 1 × rechargeable automatic parking lock.
- 1 × remote control.
- 1 × rechargeable battery.
- Mounting hardware.
- Installation manual.
Applications and Choosing This Model
The larger-capacity rechargeable battery is useful for drivers who prefer periodic charging to replacing disposable cells. Plan an accessible maintenance routine and use charging equipment approved for the supplied battery. The 2,000 kg figure describes stated compression resistance; it does not make the raised barrier a crash-rated vehicle restraint. Lower the arm completely before entering or leaving the bay.
Installation and Care
Install the parking lock on a firm, level surface using fixings suitable for the substrate. Obtain property-management permission where required, check the position against the vehicle path and confirm clearance with the barrier fully lowered. Keep the mechanism free from grit and loose objects, and inspect the base fixings periodically.
Always open the barrier fully before moving the vehicle over the mounting position. Keep the moving area clear and follow the supplied operating instructions. A parking space lock is a visible reservation device; it is not a crash-rated security bollard.
Frequently Asked Questions
What battery does this parking lock use?
The specified battery is a rechargeable 6V 7Ah lead-acid unit. Use a compatible replacement and follow the supplied charging instructions.
Will every charge last seven months?
No fixed runtime is guaranteed. Six to seven months is the listed estimate, and more frequent operation or demanding conditions can shorten it.
How much clearance is needed?
The folded housing is listed as 75 mm high. Check your vehicle clearance and the slope of the parking surface before positioning the unit.
Can you help with installation in the UAE?
Contact Sliding Gate Motor UAE to confirm installation availability, the suitability of your parking surface and service charges for your location. Installation is quoted separately where required.
