Fast Vehicle Detection for Automatic Parking Barriers & Gate Access Systems

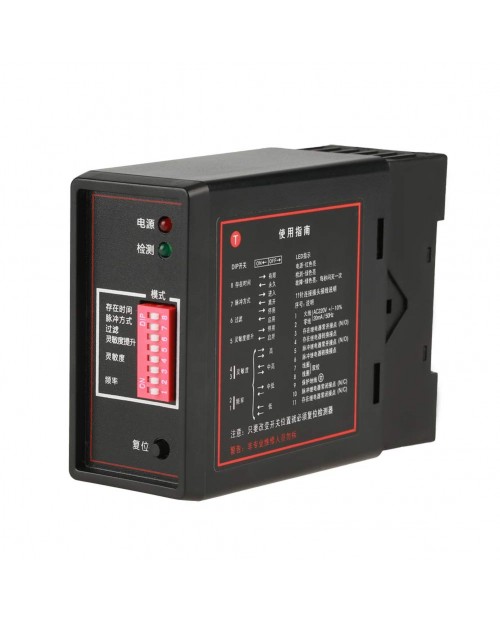

The PD-132 Vehicle Loop Detector 230V is a single-channel inductive detector used with a road-embedded loop cable to identify vehicle presence at automatic parking barriers, gates and controlled entrances. It provides a relay output to a compatible gate or barrier controller and supports adjustable sensitivity for reliable vehicle detection in residential, commercial and industrial access applications.
PD-132 Vehicle Loop Detector 230V for Gate Barriers Features
- Single-channel inductive vehicle detection
- Fast response of approximately 10 ms
- Four adjustable sensitivity levels
- Wide 20 kHz to 170 kHz operating-frequency range
- Relay output for compatible gate and barrier control panels
- Suitable for opening, presence and safety-loop applications
- Compact control-cabinet installation
PD-132 Vehicle Loop Detector 230V for Gate Barriers Technical Specifications
- Model: PD-132
- Detector Type: Single-channel inductive vehicle loop detector
- Supply Voltage: 230V AC
- Power Consumption: Approx. 4.5 VA
- Relay Rating: Up to 240V AC / 5A
- Frequency Range: 20 kHz to 170 kHz
- Response Time: Approx. 10 ms
- Sensitivity: 4 adjustable levels
- Loop Inductance: 50 µH to 1000 µH
- Recommended Loop Inductance: 100 µH to 300 µH
- Max. Loop Lead Length: Approx. 20 m
- Operating Temperature: -20°C to +65°C
- Dimensions: Approx. 78 × 40 × 108 mm
PD-132 Vehicle Loop Detector 230V for Gate Barriers Applications
- Parking gate barriers
- Automatic vehicle gates
- Commercial car parks
- Residential communities
- Warehouse and industrial entrances
- Vehicle presence and exit loops
PD-132 Vehicle Loop Detector 230V for Gate Barriers Compatibility & Installation
This workbook item is treated as the 230V AC version. PD-132 detectors also exist in other supply-voltage versions, so confirm the label before installation. The relay should command the automation controller rather than directly powering a gate motor.
Why Choose PD-132 Vehicle Loop Detector 230V for Gate Barriers?
PD-132 offers fast response, adjustable sensitivity and flexible relay integration for professional vehicle-access systems.
Why Choose Sliding Gate Motor UAE?
Sliding Gate Motor UAE supplies gate automation spare parts and accessories across the United Arab Emirates with product-selection assistance, compatibility guidance, UAE-wide delivery, professional installation support and after-sales technical assistance. For replacement parts, send the motor model, control-board details and clear photos of the existing component so compatibility can be checked before ordering.
Frequently Asked Questions About PD-132 Vehicle Loop Detector 230V for Gate Barriers
How many loops can PD-132 monitor?
One inductive loop. A separate detector is required for an additional independent loop.
Can it open a parking barrier automatically?
Yes. Its relay can command a compatible OPEN or vehicle-input terminal on the barrier controller.
Can it be used as a safety loop?
Yes, when correctly wired and configured for presence detection, alongside the appropriate overall safety system.
Is this the 230V version?
Yes. The description and specifications in this workbook are for the 230V AC PD-132 version.
