NICE WIDE M: Italian 24V Automatic Parking Barrier with 4 Metre Boom Coverage and Adjustable Movement Control
The NICE WIDE M is a 4 metre automatic parking barrier for entrances that combine moderate lane width with frequent vehicle movements. Its listed capacity of up to 300 cycles per hour makes it a useful option for busy office car parks, residential compounds and managed commercial entrances. The final traffic design should consider peak arrival periods rather than daily vehicle totals alone.
A 24VDC electromechanical gear motor drives the boom, with an integrated control unit and adjustable operating speed. The listed opening time is approximately 3.5 seconds; actual movement depends on the final setup. Anti-crush detection supports the barrier safety system, and compatible photocells provide an additional way to monitor the lane.
The WIDE housing is offered in galvanized steel or AISI 304 stainless steel versions. A large front door provides service access, while the reinforced removable motor support helps technicians work on the assembly. Specify the required cabinet version in the quotation rather than assuming that both finishes are included.
For UAE installations, select the barrier around the actual lane width, hourly usage and site temperature. The IP54 enclosure is rated for dust protection and splashing water, and the published operating range extends to +50°C. Plan a suitable location and regular maintenance so the installation remains within its stated conditions.
Key Features
- Supports boom arms up to 4 metres.
- 24VDC electromechanical drive with integrated controller.
- Adjustable operating speed and anti-crush detection.
- Listed operating capacity: up to 300 cycles per hour.
- Front service door and removable reinforced motor support.
- Galvanized steel or AISI 304 stainless steel cabinet options.
- Compatible with photocell safety detection.
Technical Specifications
- Model: NICE WIDE M.
- Mains supply: 230Vac, 50/60Hz.
- Motor voltage: 24VDC.
- Listed motor power: 300W.
- Opening time: approximately 3.5 seconds.
- Torque: 140Nm.
- Operating capacity: up to 300 cycles/hour.
- Protection rating: IP54.
- Operating temperature: -20°C to +50°C.
- Dimensions: 320 × 205 × 1000mm.
- Weight: 46kg.

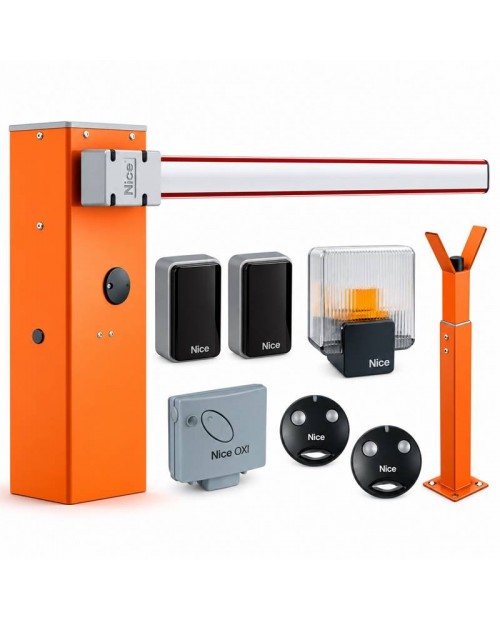

Listed Kit Contents
- 1 × NICE WIDE M barrier.
- 1 × 4 metre boom arm.
- 1 × EPMB photocell sensor pair.
- 1 × push button.
- 1 × fixing plate.
Access Control and Ordering
The barrier can form part of a wider access-control installation using appropriately matched remotes, readers or external controllers. These integrations require compatible interfaces and commissioning; they are not built-in ANPR or mobile access features. Request your UAE quotation with the lane measurements, intended access method and cabinet finish, and confirm the exact kit contents and installation scope.
Frequently Asked Questions
How long is the boom on the WIDE M?
This model supports a boom up to 4 metres, and the listed kit includes a 4 metre arm. Check the final clear opening after positioning the cabinet.
How quickly does the barrier open?
The listed opening time is approximately 3.5 seconds. Operating speed is adjustable and the final setting depends on the installed configuration.
What hourly usage can it support?
The published capacity is up to 300 cycles per hour. The installation should be selected for traffic peaks and maintained according to the equipment instructions.
Can it work with access readers or ANPR?
Integration is possible through suitable access-control equipment and interfaces. Readers, cameras, controllers and their configuration should be specified separately.
Which safety equipment is included?
The listed kit includes an EPMB photocell pair, and the barrier has anti-crush detection. The installer must assess any additional detection required for the vehicle lane.
