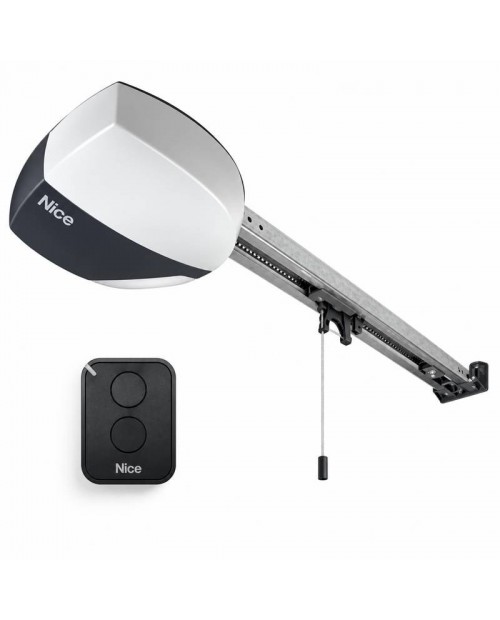

NICE SPINBUS SPIN30 Belt-Drive Garage Door Opener with 800 N Force and BlueBUS Safety Connections
The NICE SPINBUS SPIN30 combines a belt-driven rail with a 24 V DC motor for compatible sectional and up-and-over garage doors. Its 800 N force rating and stated sectional-door area limit of 12.5 m² make it an option for powered access to a villa garage. The selected rail and door geometry must also satisfy the relevant installation limits.
A magnetic encoder helps the controller track door movement. Adjustable acceleration and deceleration provide controlled starts and stops, while obstacle detection monitors operation. These features work together with correctly installed safety devices and commissioning tests; the door mechanism must also remain in good mechanical condition.
NICE BlueBUS connects compatible accessories using a two-wire arrangement, simplifying the wiring layout for supported photocells. Optional backup power must be specified with the correct NICE components. Receiver configuration, transmitters and any smart-access interface should be checked for the supplied operator version.
Key Features
- Belt transmission for quiet garage operation.
- 24 V DC motor with magnetic encoder.
- BlueBUS connection for compatible two-wire accessories.
- Adjustable acceleration and deceleration.
- Obstacle detection with stop/reverse response.
- Compatible optional backup battery provision.
Technical Specifications
- Model: NICE SPINBUS SPIN30.
- Mains supply: 230 V AC, 50 Hz.
- Motor voltage: 24 V DC.
- Force: 800 N.
- Maximum stated sectional-door area: 12.5 m².
- Maximum stated up-and-over door area: 11.2 m².
- Usage reference: 50 cycles/day, subject to installation conditions.
- Enclosure protection: IP40.
Garage Compatibility and Installation
For a garage in Dubai, Sharjah, Abu Dhabi or elsewhere in the UAE, begin with the actual door measurements and operating pattern. Check headroom, travel, mounting points and the condition of rollers, hinges and counterbalance hardware. A powered opener should be fitted to a door that already moves freely and remains correctly balanced.
During commissioning, the installer should set opening and closing travel, test force response and any connected safety sensors, and demonstrate the manual release. Confirm the supplied drive hardware, remote controls and optional accessories before ordering so the installation matches the access requirements of the property.
Frequently Asked Questions
Can SPIN30 operate every door below 12.5 m²?
No. Height, width, balance and rail travel have separate limits. Confirm all dimensions for the exact rail and operator combination.
What does BlueBUS do?
It provides a two-wire connection for compatible NICE accessories. Conventional photocells cannot be assumed to connect in the same way.
Is backup power standard?
Backup operation requires the specified compatible battery arrangement. Confirm accessories and package contents before ordering.
